The Eye & Orbit

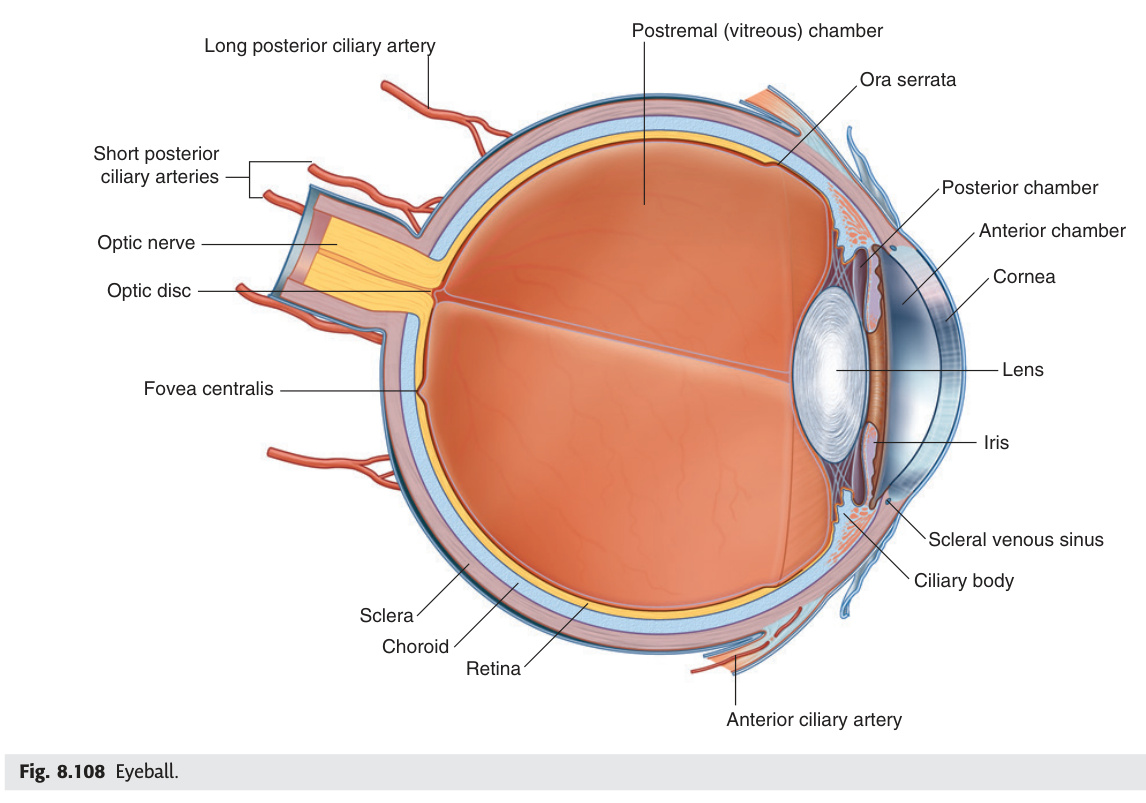

Fig. 8.108 — Eyeball: the three coats (fibrous = sclera + cornea; vascular = choroid, ciliary body, iris; inner = retina), the lens, and the anterior, posterior and vitreous chambers.

Gray's Anatomy for Students, 4e

Three tunics: fibrous (sclera+cornea) · vascular (choroid+ciliary body+iris) · neural (retina) · Lens = only avascular structure in body

The orbit is a four-walled bony pyramid whose walls vary dramatically in strength, and knowing which wall is thinnest turns anatomy directly into clinical diagnosis. The orbital floor — made largely of the maxilla — is the weakest, which is why a blow to the eye (a fist, a squash ball) blows it downward into the maxillary sinus, trapping the inferior rectus and preventing the patient from looking upward. The medial wall, the paper-thin lamina papyracea of the ethmoid, is the reason sinusitis can become an orbital emergency — pathogens track through it silently. The optic canal and superior orbital fissure are the cable conduits of the orbit: the optic canal carries the optic nerve and ophthalmic artery, while the superior orbital fissure carries every other nerve that moves the eye (CN III, IV, VI) and the sensory branch supplying the orbit (CN V1); a lesion at the fissure paralyses all of them simultaneously. The cavernous sinus sits just behind, receiving blood from the face via connections that run without valves — which is why dental or upper-lip infections can propagate intracranially as cavernous sinus thrombosis, a neurological emergency.

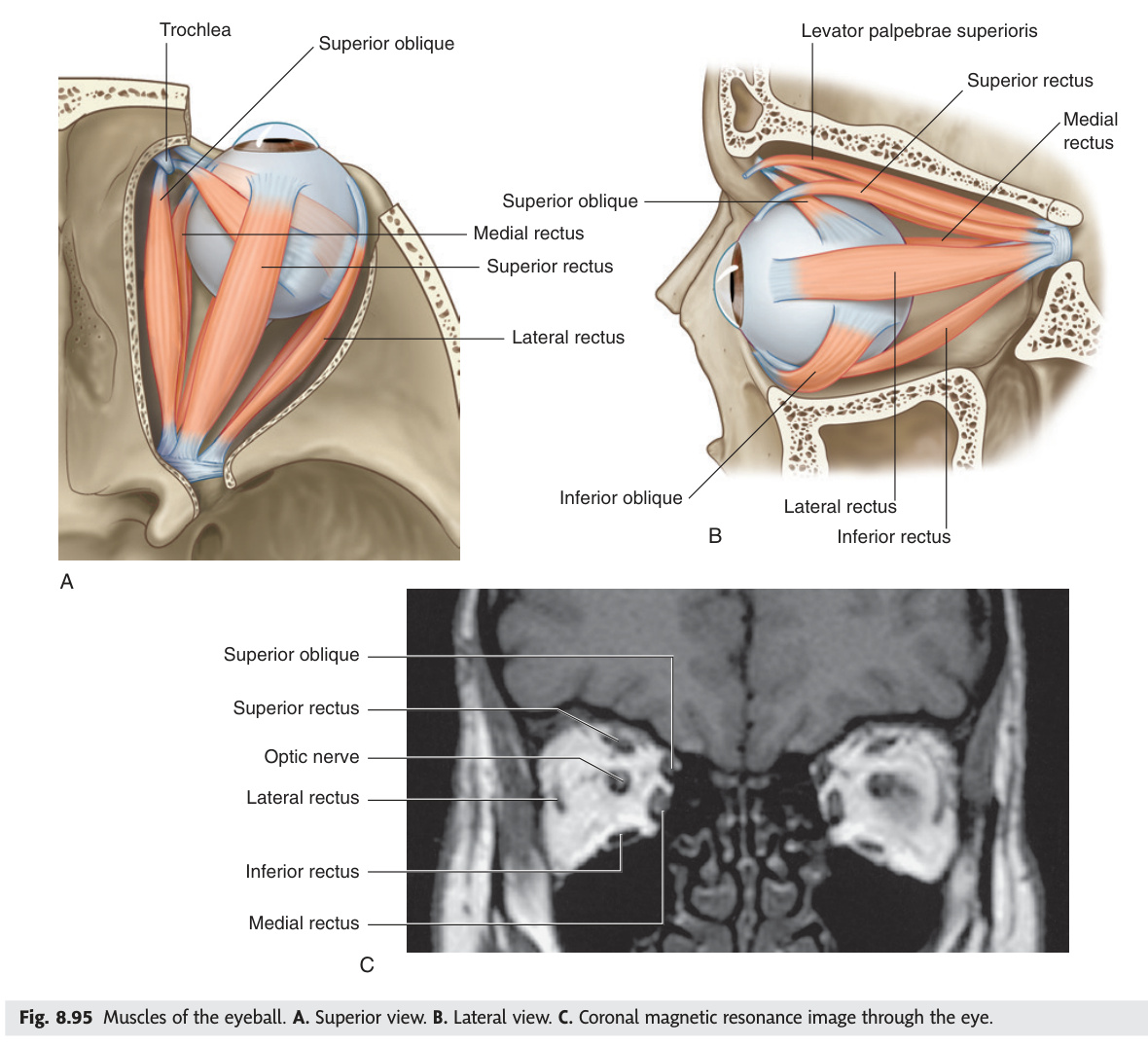

Fig. 8.95 — Muscles of the eyeball. A. Superior view. B. Lateral view. C. Coronal MRI — the four recti and two oblique muscles.

Gray's Anatomy for Students, 4e

Six muscles move the eyeball, but only two nerves get their own single-muscle assignment — CN IV (trochlear) supplies only the superior oblique, and CN VI (abducens) supplies only the lateral rectus; everything else belongs to CN III. This is clinically indispensable: if a patient cannot abduct one eye at all, the lesion is CN VI until proven otherwise; if the eye drifts down and out with a drooping lid and dilated pupil, CN III is out. The superior oblique is the anatomically peculiar one — it runs forward, hooks around the trochlea (a pulley on the medial orbital wall), then turns backward to insert on the back of the eyeball, so its primary action in clinical testing is depression of the adducted eye (looking down and in toward the nose). CN IV palsy manifests as vertical diplopia worst going downstairs, and the patient unconsciously tilts their head to the opposite side to reduce double vision — the Bielschowsky head-tilt test exploits this to confirm the diagnosis.

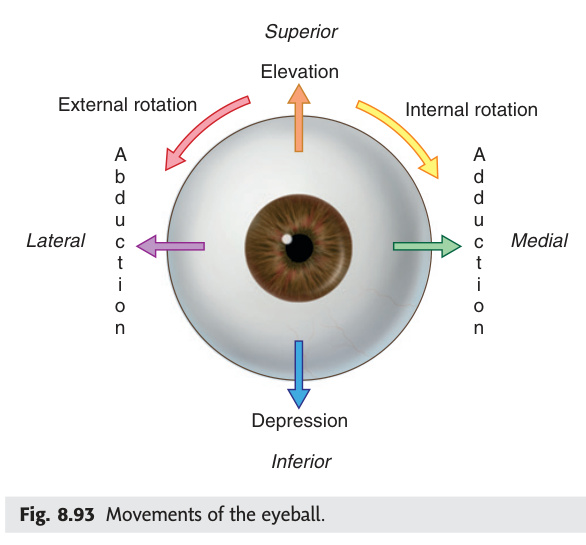

Fig. 8.93 — Movements of the eyeball produced by each extraocular muscle — the basis of the "H" test for CN III, IV and VI palsies.

Gray's Anatomy for Students, 4e

The three nerves that move the eye — CN III, IV, and VI — are among the most clinically tested in neurology, because each produces a distinctive and immediately recognisable pattern of failure. CN III is the workhorse: it runs almost every muscle in the orbit, including the lid elevator and the pupil constrictor. When it fails completely, the eye looks down and out (lateral rectus and superior oblique still working) with a drooping lid and a large fixed pupil — a presentation that demands urgent CT angiography to exclude a posterior communicating artery aneurysm compressing the nerve from outside. The key distinction between surgical and diabetic CN III palsy hinges on the pupil: compressive causes squeeze the outer parasympathetic fibres first, giving pupil involvement as the earliest sign, while ischaemic diabetic palsy spares the pupil because the peripheral fibres have better blood supply. The medial longitudinal fasciculus (MLF) connects abducens and oculomotor nuclei for conjugate gaze; a plaque of MS in the MLF at age 25 produces the classic internuclear ophthalmoplegia — failure of adduction on the side of the lesion with nystagmus in the abducting eye.

The eyeball is built in three concentric layers, each with a distinct job and a distinct set of clinical catastrophes when it fails. The outer fibrous layer — sclera and cornea — is the structural shell; the cornea's remarkable transparency depends on its avascularity and precise lamellar arrangement of collagen, which is why even a minor surface scar dramatically impairs vision and why corneal grafts succeed (no vessels means no immune rejection). The middle uveal (vascular) layer feeds the outer retina, controls the pupil via the iris, shapes the lens via the ciliary muscle, and produces aqueous humour — making it the target of both glaucoma physiology and anti-inflammatory treatment. The inner neural layer, the retina, separates into two parts at its ora serrata: a photoreceptive posterior portion and a non-visual anterior lining of the ciliary body and iris. When the neurosensory retina detaches from the retinal pigment epithelium, photoreceptors are deprived of their blood supply within hours — if the macula detaches, permanent central visual loss follows even after surgical reattachment.

Aqueous humour is a crystal-clear fluid produced by the ciliary body, flowing from the posterior chamber through the pupil into the anterior chamber, then draining at the iridocorneal angle into the trabecular meshwork and the canal of Schlemm. This circulation is the pressure regulator of the eye, and when it fails — either because the drain is slowly clogged (open-angle glaucoma) or because the iris suddenly blocks it (acute angle-closure) — intraocular pressure rises and silently destroys the optic nerve. Open-angle glaucoma is the quiet one: raised IOP erodes peripheral visual fields over years, often unnoticed until late, and is treated with drops that either reduce production (beta-blockers like timolol) or increase drainage (prostaglandins like latanoprost). Acute angle-closure is the dramatic one: sudden pain, a rock-hard red eye, corneal haze, nausea, and a mid-dilated non-reactive pupil — a genuine emergency treated with IV acetazolamide and pilocarpine to force the pupil constricted and restore drainage, followed by laser peripheral iridotomy to prevent recurrence.

The visual pathway is one of the most rigorously tested anatomical pathways in clinical medicine because every relay station from the retina to the occipital cortex produces a uniquely localising pattern of visual field loss. The key anatomical fact is the partial decussation at the optic chiasm: nasal fibres from each retina cross to the opposite optic tract, while temporal fibres stay ipsilateral. This means a lesion at the chiasm (the pituitary tumour pressing upward from below) destroys only the crossing nasal fibres, producing bitemporal hemianopia — each eye loses its outer (temporal) visual field. Anterior to the chiasm, only one eye is affected; posterior to it, both eyes lose the same half of the visual field (homonymous hemianopia). Quadrantanopias localise even more precisely: the inferior fibres of the optic radiation loop forward into the temporal lobe (Meyer's loop) before heading posteriorly, so a temporal lobe lesion gives a superior quadrantanopia — "pie in the sky." Macular sparing with occipital lesions occurs because the macular cortex at the occipital pole has dual blood supply from both PCA and MCA collaterals.

The pupil is a two-nerve system: the parasympathetic pathway constricts it (the afferent arm runs in CN II to the pretectal nucleus, then the efferent arm runs in CN III to the ciliary ganglion), and the sympathetic pathway dilates it (a three-neuron chain descending from the hypothalamus through the ciliospinal centre at C8–T2, then up to the superior cervical ganglion, then along the ICA into the orbit). Examining the pupil in the dark and in light, testing the swinging flashlight sign, and looking for ptosis and anhidrosis together gives you localising information that no scan can replace. The RAPD (relative afferent pupillary defect) is the most sensitive bedside sign of unilateral optic nerve disease — when you shine the torch in the affected eye, both pupils dilate because the damaged optic nerve sends a weaker signal than the normal side. Argyll Robertson pupils (small, irregular, bilateral, accommodating but not reacting to light) are the hallmark of neurosyphilis and represent selective destruction of the pretectal light-reflex relay while the accommodation pathway through the superior colliculus is spared.

Fig. 8.290 — Eye and lacrimal apparatus: lacrimal gland → tears across the eye → lacrimal puncta → canaliculi → lacrimal sac → nasolacrimal duct into the inferior meatus.

Gray's Anatomy for Students, 4e

The eyelid is a precisely engineered structure that opens, closes, blinks, and produces tears in perfect co-ordination — and when any one component fails, the clinical consequences are immediate. Two muscles govern lid position: orbicularis oculi (CN VII) closes the eye; levator palpebrae superioris (CN III) and Müller's muscle (sympathetic) open it. Bell's palsy knocks out orbicularis, leaving the eye unable to close and the cornea exposed to drying and ulceration — lagophthalmos requiring lubricating drops and nocturnal taping. The Meibomian glands in the tarsal plates produce the oily outer layer of the tear film; when their ducts clog, a lipogranuloma (chalazion) forms; when they become acutely infected (hordeolum/stye), the lid becomes hot and tender. Tears drain medially through the lacrimal puncta into the lacrimal sac and down the nasolacrimal duct to the inferior meatus — when the nasolacrimal duct is blocked in a newborn, epiphora (overflow tearing) follows and can be treated by massage or syringing.

Proptosis — forward displacement of the eyeball beyond the orbital rim — is the orbital symptom that unifies a surprisingly wide range of pathologies, from autoimmune thyroid disease to carotid-cavernous fistula to orbital cellulitis. The single most important first question is bilateral versus unilateral: bilateral proptosis almost always means thyroid eye disease (Graves' ophthalmopathy), while unilateral proptosis demands a systematic differential including tumour, inflammation, vascular malformation, and infection. Thyroid eye disease operates through TSH-receptor antibody cross-reactivity with orbital fibroblasts, causing glycosaminoglycan accumulation and muscle belly swelling — inferior rectus is first and most often affected, so the patient's first complaint is diplopia looking upward. The most feared complication is dysthyroid optic neuropathy from crowding at the orbital apex: emergency decompression surgery or high-dose steroids are required to preserve vision. Orbital cellulitis and preseptal cellulitis look superficially similar (swollen, red, tender periorbital tissue) but are separated by the orbital septum — orbital cellulitis causes proptosis and ophthalmoplegia with vision threat, while preseptal cellulitis does not.

Fig. 8.109 — Ophthalmoscopic (fundus) view of the right eye: optic disc, retinal arteries and veins radiating out, and the macula with the central fovea.

Gray's Anatomy for Students, 4e

The retina is one of the most metabolically active tissues in the body, and its blood supply — the central retinal artery branching from the ophthalmic artery — leaves absolutely no collateral reserve. Central retinal artery occlusion produces ischaemic whitening of the entire retina within minutes, with the fovea remaining pink as an isolated cherry-red spot because it is fed by the choroid rather than the retinal circulation. This is an ophthalmic emergency comparable to a stroke — the treatment window is brief and outcome is rarely complete recovery. Central retinal vein occlusion produces the opposite appearance: an explosion of haemorrhages in all four quadrants (the "blood and thunder" fundus) from backed-up venous pressure. Diabetic retinopathy follows a predictable staging progression driven by pericyte loss, microaneurysm formation, and ultimately neovascularisation under the drive of VEGF — and the entire disease process is modifiable through glycaemic and blood pressure control long before intravitreal injections are needed. AMD is now the leading cause of irreversible visual loss in the developed world, and the shift from dry to wet disease — driven by choroidal neovascularisation — is the moment when treatment with anti-VEGF injections must begin within days to preserve central vision.

A cataract is any opacity of the crystalline lens, and despite being the world's most common cause of treatable blindness, the underlying biology is straightforward — protein denaturation, cross-linking, or disruption of the normally transparent lens fibres. The type of cataract tells you the aetiology: posterior subcapsular cataracts in a young patient on steroids, nuclear sclerosis in an elderly patient complaining of worsening distance vision, or a dense central opacity in a child born to a mother with rubella. Posterior subcapsular cataract is the most visually disabling type because it sits at the visual axis and is maximally exposed when the pupil constricts for near tasks and bright light. Congenital cataract is a paediatric emergency: the visual cortex must receive a clear image during the critical period (birth to ~7 years) or it will permanently suppress that eye — amblyopia that no operation can later reverse. Phacoemulsification is now the world's most performed elective operation, and posterior capsule opacification — its commonest late complication — is treated definitively with a single outpatient Nd:YAG laser session.

The optic disc is the only place in the body where you can directly observe a nerve and its vasculature without surgery — making fundoscopy one of the most information-dense clinical examinations available. Papilloedema and papillitis look similar on fundoscopy (both cause disc swelling), but they are completely different diseases: papilloedema is bilateral disc swelling driven by raised intracranial pressure, vision is preserved until late, and there is no pain with eye movement; papillitis (optic neuritis at the disc) is typically unilateral, vision falls severely and acutely, colour vision is early affected, and the patient experiences pain on eye movement. The swinging flashlight test separates them clinically — papillitis gives a RAPD, bilateral papilloedema does not. Giant cell arteritis deserves special emphasis because it is one of the few true ophthalmic emergencies: any patient over 50 with new headache, jaw claudication, and raised ESR has GCA until proven otherwise, and the fellow eye can go blind within 24 hours without immediate high-dose corticosteroids — biopsy must never delay treatment.
